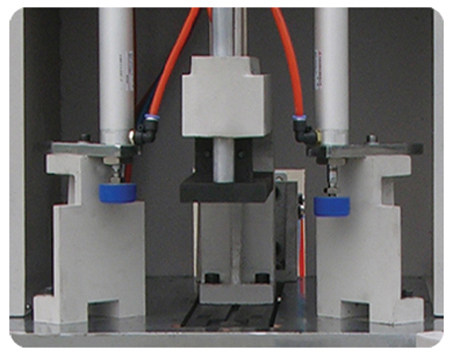

SQJ02-120 Corner Cleaning Machine
Time：2018/12/27

PRODUCT

Looking forward to build future with you and common development.

  • Feature


    ◎The machine mainly applies to corner cleaning for PVC profiles, once can clean the welding

    slag on top and bottom.

    ◎It has characteristics of high reliability, efficiency and accuracy.



    Technical Parameter:


    Model

    SQJ02-120

    Air pressure

    0.4~0.6MPa

    Air consumption

    100L/min

    Profiles width

    20~120mm

    Profiles height

    20~120mm

    Groove width

    3±0.20mm

    Groove depth

    0.3±0.15mm

    Overall dimension

    1000×540×1430mm
