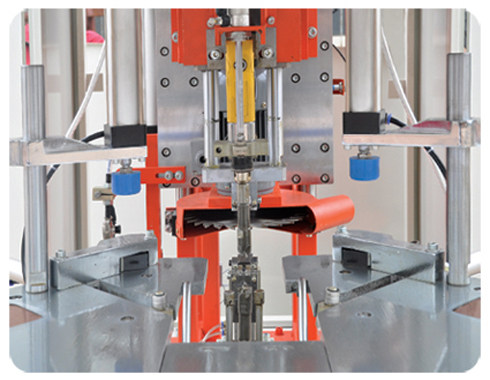

SQJ-CNC-120B-5 CNC Corner Cleaning Machine
Time:2018/12/27
Classify:Upvc Window and Door Processing Machine

PRODUCT

Looking forward to build future with you and common development.

  • Feature


    ◎ For PVC profile welding slags cleaning.

    ◎ Can clean multi-shaped welding slags, clean the up/bottom, outside ellipse and the outside vertical surface, sealing groove etc. at the same time.

    ◎ It adopted Delta server and advanced LCD touched screen.

    ◎ It can store hundreds of programs, fit for various profile processing.

    ◎It has characteristics of reliability, high processing quality, high efficiency,and easy operation.



    Technical Parameter:


    Model

    SQJ-CNC-120B-5

    Input voltage

    380V 50Hz

    Input power

    2.0 kw

    Air pressure

    0.4~0.7MPa

    Air consumption

    100L/min

    Profiles width

    20~120mm

    Profiles height

    20~120mm

    Groove width

    3±0.20mm

    Groove depth

    0.3±0.15mm

    Overall dimension

    1800×1000×1700mm
