Feature

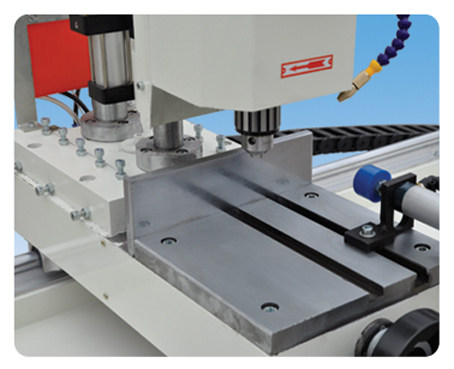

◎ Used for processing holes on aluminum, PVC and curtain wall, once can process several holes, fit for over-lengthy profiles.
◎ Four heads can work together as well.
◎ Boring anchor can be installed on each head results more holes.
Technical Parameter:
Model
LZD4-13
Input voltage
380V 50Hz
Input power
3.0 Kw
Air pressure
0.5~0.8MPa
Air consumption
100L/min
Motor rotation speed
1400r/min
Max. distance of holes
5000mm
Travel
125mm
Overall dimension
5500×1000×1900mm
