Looking forward to build future with you and common development.
Feature
◎ It process various kinds of holes, grooves and water-slots for aluminum or PVC window and doors.
◎ Changeable templates with different holes and grooves.

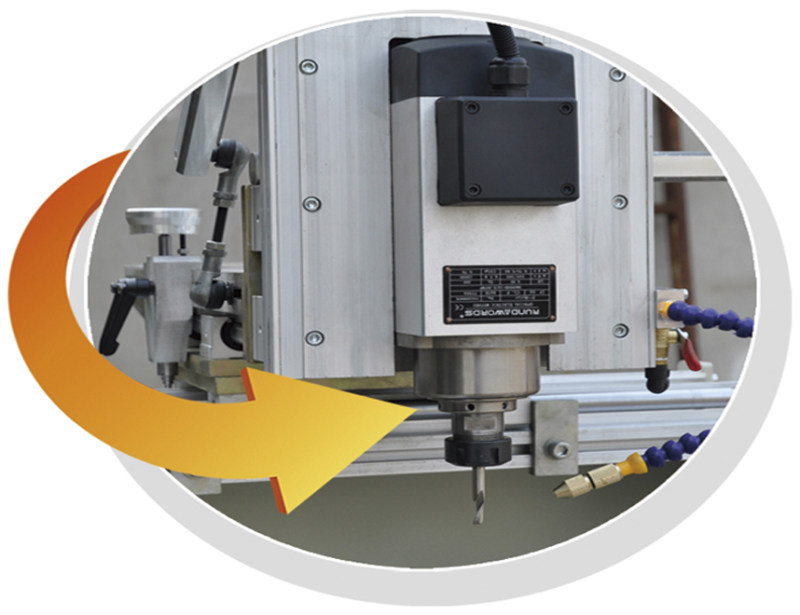

◎ Customized high-speed spindle, low noise, high precision.
◎ It has features of reliable operation and convenient maintenance.
Technical Parameter:
Model
LXF-370×125
Input voltage
220V 50Hz
Input power
2.2kw
Air pressure
0.5~0.8MPa
Air consumption
80L/min
Motor rotation speed
12000r/min
Copy routing range
370×125mm
Milling cutter diameter
φ5 / φ8mm
Overall dimension
2200×1100×1600mm
