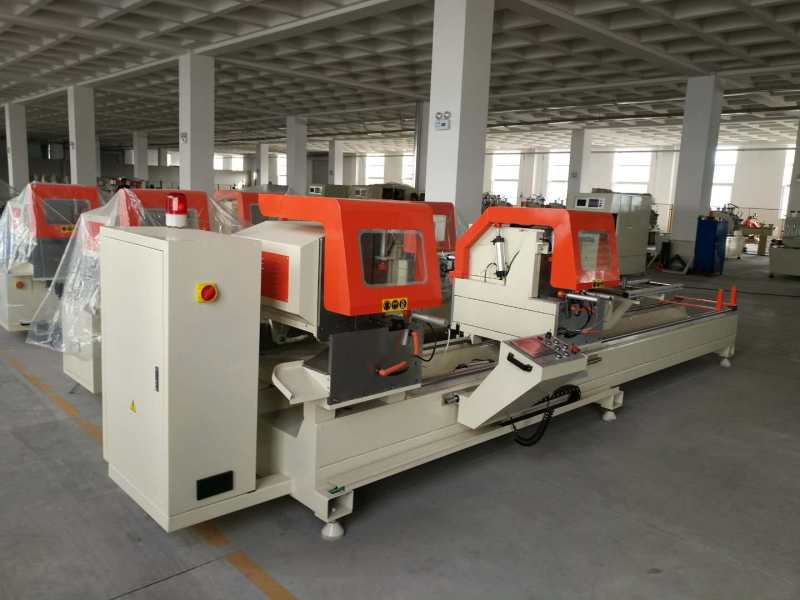

LJZ2-CNS-500×4200(5000) Digital Display Double Mitre Saw

PRODUCT

Looking forward to build future with you and common development.

  • Feature


    ◎ Used for cutting profiles such as aluminum profile and curtain wall.

    ◎ Touched screen and import controlling system adopted with high accuracy and smooth working. Two heads cutting angle 90°45°67.5°(22.5°) are available.

    ◎ Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.

    ◎ The system can store various of profiles, convenience and efficiency.

    ◎ Digital display system adopted, with high efficiency and accuracy.


    Technical Parameter:


    Model

    LJZ2-CNS-500×4200(5000)

    Input voltage

    380V 50Hz

    Input power

    4.5Kw

    Air pressure

    0.5~0.8MPa

    Air consumption

    200L/min

    Spindle speed

    3200r/min

    Cutting length

    360~4200mm(360~5000mm)

    Cutting width

    10~130mm

    Cutting height

    10~300mm

    Cutting angle

    90° , 45° , 67.5°

    Saw feeding speed

    0~3m/min

    Saw blade standard

    φ500×4.4×φ30×Z120

    Overall dimension

    5500(6300)×1700×1600mm

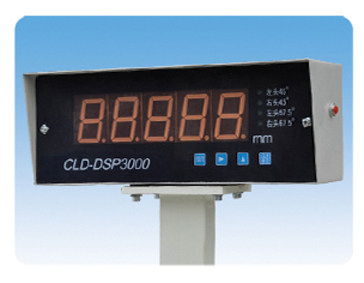

  • 20181206134606133.jpg
