Feature
◎ Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.
◎ Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum connectors.

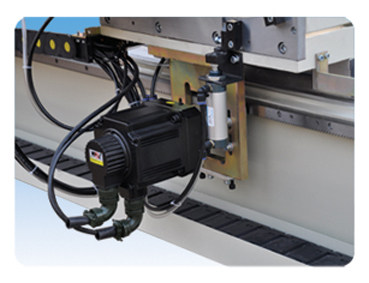

◎ Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch, and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.
◎ Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
◎ Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.
◎ Automatic protecting guards result convenience and safety.
Technical Parameter:
Model | LJZ2-CNC-500×4200(5000) |
Input voltage | 380V 50Hz |
Input power | 6.0Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 200L/min |
Spindle speed | 3200r/min |
Cutting length | 400~4200mm(400~5000mm) |
Cutting width | 10~130mm |
Cutting height | 10~300mm |
Cutting angle | 90° 45° 67.5° |
Saw feeding speed | 0~3m/min |
Saw blade standard | φ500×4.4×φ30×Z120 |
Overall dimension | 5500(6300)×1700×1600mm |
