LJZ2-450×3800 Double Mitre Saw

PRODUCT

Looking forward to build future with you and common development.

  • Feature


    ◎ Used for cutting aluminum and PVC at 45° 90°.

    ◎ The right head can be adjusted horizontally by the motor.

    ◎ Two heads work independently or together.

    ◎ Uniform speed feeding and smooth motion due to airdraulic damping cylinder.



    Technical Parameter:


    Model

    LJZ2-450×3800

    Input voltage

    380V 50Hz

    Input power

    3.55Kw

    Air pressure

    0.4~0.6MPa

    Air consumption

    200L/min

    Spindle speed

    3200r/min

    Cutting length

    360~3800mm

    Cutting width

    ≤120mm

    Cutting height

    ≤200mm

    Cutting angle

    90° 45° -45°

    Saw feeding speed

    0~3m/min

    Saw blade standard

    φ450×4×φ30×Z120

    Overall dimension

    4800×1300×1450mm

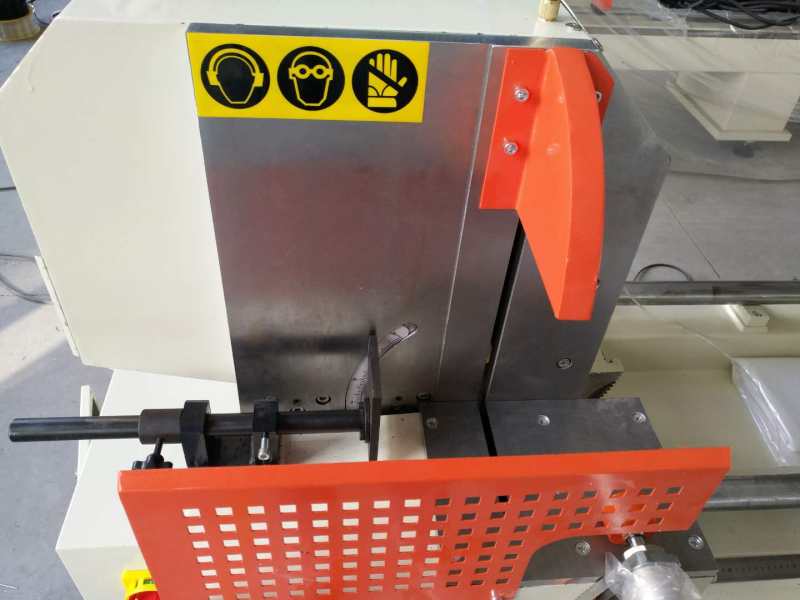

  • 20181207105149354.jpg@!w800

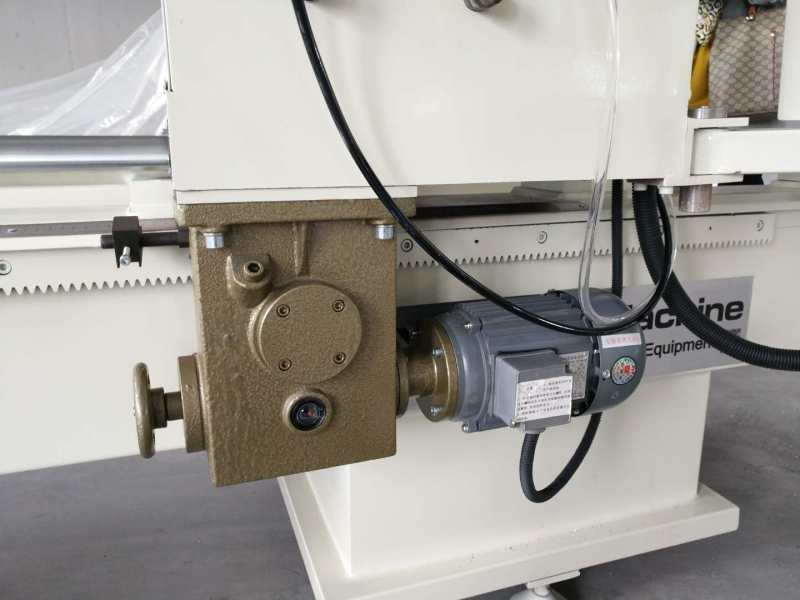

    20181207105148543.jpg@!w800
