Feature
◎ Mainly used for profiles cutting, such as aluminum, PVC and curtain wall profiles.
◎ Saw blades be installed on the motor directly, with the lever swing mode for cutting.
◎ The high accuracy imported saw blades result high accuracy cutting.
◎ The speed reducer be driven by Imported servo motor, results any angle could be cut between 45°~157.5°
◎ The Imported control system could optimize the profile cutting.
◎ Several profiles size could be input in once, so the cuttings could be finished continuous.
◎ Input the cutting datas you need directly, do not need back to reference point first when changing the cutting length.
◎

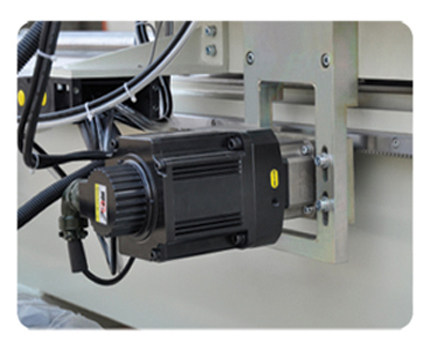

The ball screw be driven by imported servo motor drives the saw head,
results high speed and high accuracy for repeat locating.
◎ With bar code printer, result a digital production.
Technical Parameter：
Model | LJB2B-CNC-5000 |
Input voltage | 380V 50Hz |
Input power | 6.8Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 200L/min |
Spindle speed | 3200r/min |
Cutting length | 380~5000mm |
Cutting width | 10~135mm |
Cutting height | 10~230mm |
Cutting angle | 45°~ 57.5° |
Saw feeding speed | 0~3m/min |
Saw blade standard | φ500×4.4×φ30×Z120 |
Overall dimension | 7000×1800×1800mm |
