CNC Three-axis Machining Center

PRODUCT

Looking forward to build future with you and common development.

  • Feature


    ◎ This machine is designed for tapping, routing and milling holes, lock holes, launder and other slots on the profiles of curtain walls. It can work on various profiles.

    ◎ It adopts YASKAWA servo-motor and driver which are made in Japan.

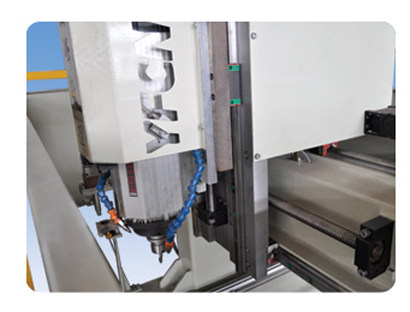

    ◎ It adopts high speed HSD spindle of Italy

    ◎ It adopts HIWIN linear guide and YYC grinded gear racks result highly precise process.

    ◎ It adopts computer control system, CAD-CAM software, which are used in industry area specially.

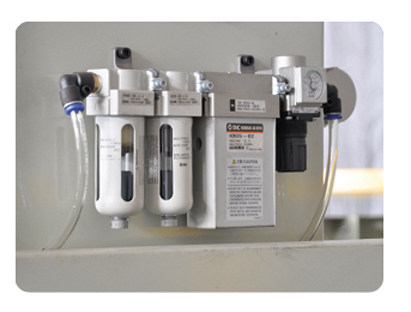

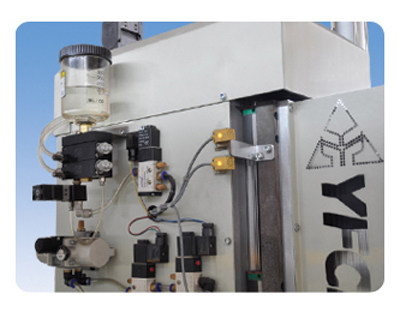

    ◎ It adopts SEIMENS electrical & pneumatic products, FESTO solenoid valves, SMC gas resource processors and JPC air cylinders.

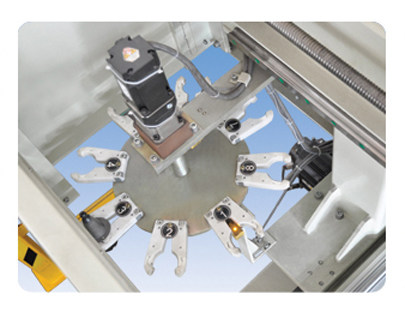

    ◎ Revolving six position mills makes the mill-changing convenient.

    ◎ Double profile locating devices, no need to stop the machine while taking the profiles on and off.

    ◎ With half-close safeguard device to insure the personal safety of the operator.


    Technical Parameter


    Model

    YFLXA-CNC-7000

    Input voltage

    380V 50Hz

    Input power

    12Kw

    Spindle power

    5.5Kw

    Spindle speed

    0~18000r/min

    X-axes travel

    7200mm

    X-speed

    0~60m/min

    Y-axes travel

    900mm

    Y-speed

    0~30m/min

    Z-axes travel

    300mm

    Z-speed

    0~20m/min

    Process range

    7000×600×280mm

    Overall dimension

    11000×1800×2300mm




  • 20181205175040132.jpg@!w800

    20181205175037506.jpg@!w800

    20181205175037767.jpg@!w800

    20181205175037639.jpg@!w800
