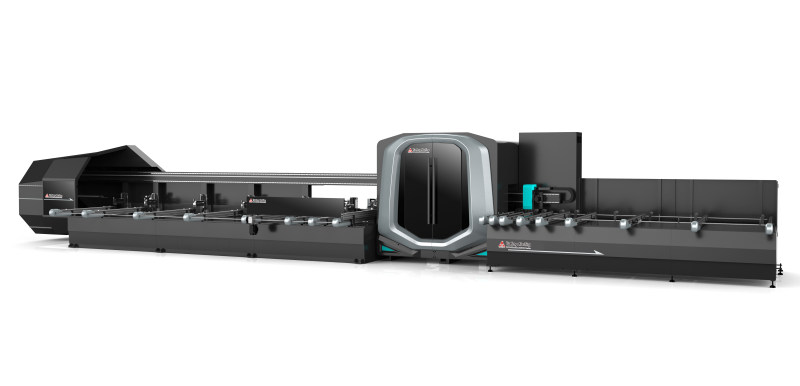

CNC Sawing and Milling Center
Laser independent runway ·
front spindle independent station ·
rear lower spindle independent station ·
upper spindle
independent station ·
upper saw arbitrary
Angle cutting
☆ The new "central brain" (five channels of the family system) through the overall context, experience more wisdom!
☆ Independent five-channel- - mutual
independent processing zone, avoid interference,
more collaborative work more efficient!
☆ Runway type laser cutting device- -longer travel, corner code hole glue hole process
☆ Intelligent manipulator- - manipulator
automatic error correction function, clip induction, automatic rotation, intelligent memory!
☆ On the saw blade any Angle cutting- -can cut any Angle and Angle, to meet a variety of processing needs!
☆ Independent Angle cutting device- -equipped with independent tail knife Angle cutting device , more than fast!
Main technical parameters：
Overall dimensions (length * width * height) | 15950 * 3082 * 2410 (excluding size) |
Size of chip machine (length * width * height) | Approximately 3, 150 mm * 500mm * 700mm |
total weight | About 9 tons |
Enter the power supply | 380V / 50 HZ three-phase four-wire system |
working air pressure | 1.6MPA |
Saw cut speed | 15-50m/min |
Servo running speed | 40130m/min |
The length of the billet | 1100≤L ≤7000m m |
Saw cut length | ≥300 |
The feeding table allows the feeding quantity | 8 + 1 branch cycle type |
Saw diameter | Φ 550 |
Saw cut Angle | 45°, -45°, and 90° can be cut in arbitrary combination |
Saw cut way | At 45° , the upper saw blade rotates at any corner |
Profile processing scope | Height: 130mm Width: 130m m |
Drilling method | One out, one out, one out, one out (swing) |
Laser addition, working mode | Rear laser cutting + marking, front laser marking |
